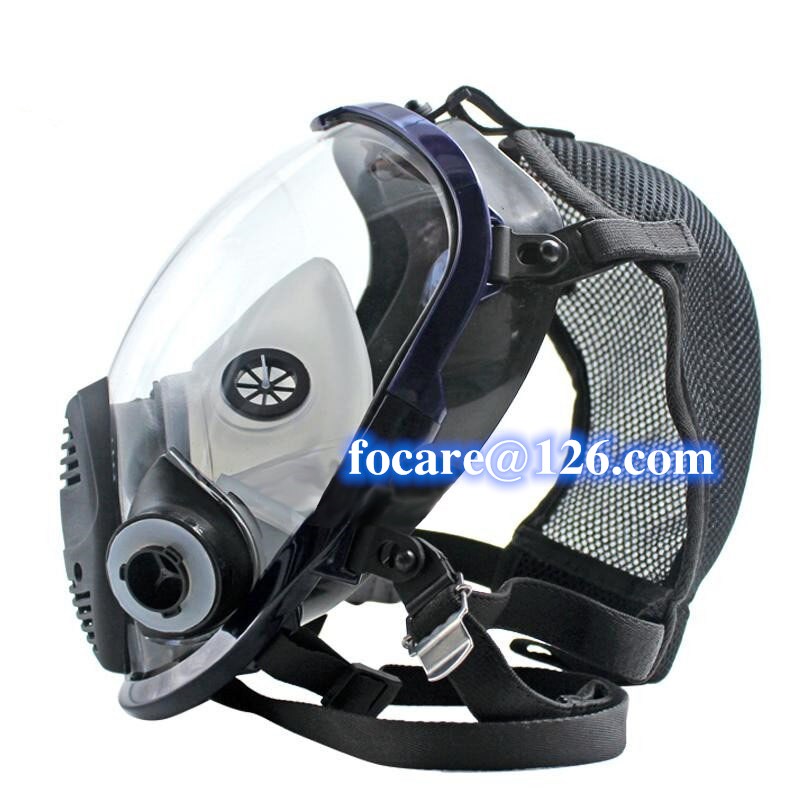

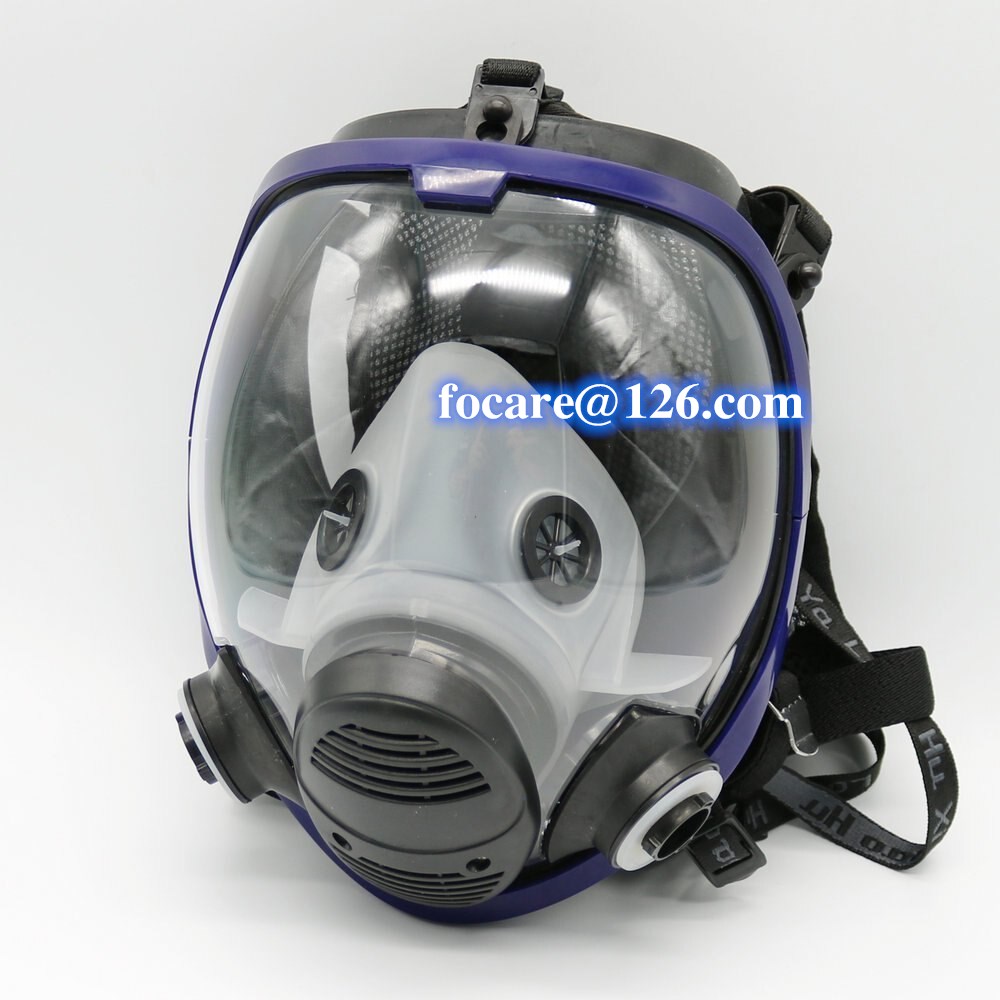

Two component injection mold also can be called two color injection mold, two shot injection mold, 2k injection mold, is a special plastic injection mold for molding plastic products with two different plastics .Such as the bi material nose cup for gas mask respirator, it is made of rigid plastic and silicone material together. It is a fine example for the parts manufactured using two component injection mold .

2 component nose cup gas mask respirator injection mold
2 component nose cup gas mask respirator injection mold
two component nose cup gas mask respirator injection mold
two component nose cup gas mask respirator injection mold

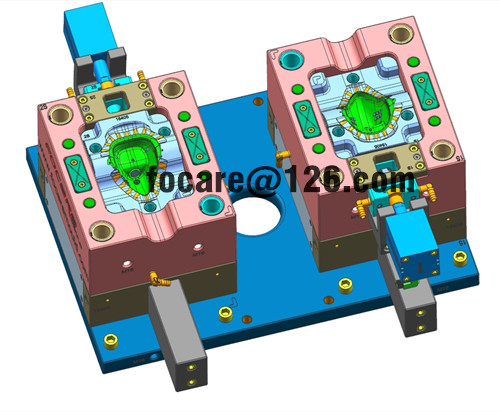

Focare Mould is an expert in design and manufacture of high quality two component injection mold, we offer two component rotary injection mold design for the bi material nose cup for gas mask respirator. The two component mold structure as following. There are two cores and cavities in one mold, The two component injection mold will be rotated by rotating table of two shot injection molding machine to complete the injection of two different materials.

two component nose cup gas mask mold design
two component nose cup gas mask mold design
2 component nose cup gas mask mold design
2 component nose cup gas mask mold design

Focare Mould-China reliable multi shot mold manufacturer, can offer you variety of multi shot face mask molds, such as 2K silicone air purifying respirator mask mold,two shot fire escape mask mold, Multi shot dust proof face mask mold,two shot silicone oral nasal cup mold and multi shot medical oxygen mask mold. If you want to know more about two component gas mask respirator injection mold design and two shot injection molding process, contact to focare@126.com .
